Automatic Tank Gauging System (ATG) Blue Sky
Automatic Tank Gauging System (ATG) consists of a liquid level gauge controller, magnetostrictive level gauge, management server, and management software other components, through the tank level, the average temperature, and other data of the accurate measurement, effective management of gas station Invoicing And shift and other business. The system can monitor 1-6 tanks simultaneously, fully realizing the closed measurement and data quasi Indeed, safety, at the same time with side leakage alarm
৳130,000/pcsGet Quotation
Gallery
Product Details
Composition of ATG control box

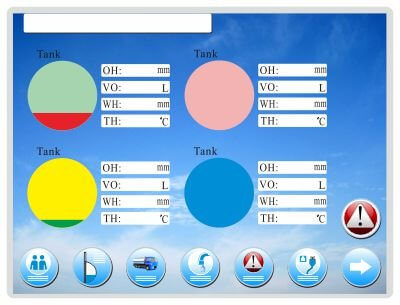

- TFT 8-inch color touchscreen, 800×600 resolution, graphical touchscreen control, intuitive and fast
- Core processing motherboard, Consists of high-end embedded processors and peripheral circuits, which are the data processing center of the entire liquid-level measurement system
- Safety barrier, The safety barrier is an explosion-proof safety isolation component, which outputs safe and reliable current and voltage to provide probe work
- Power module, The power module provides stable power to the entire control box
Main parameters of ATG control box
- Working power: AC220V 0.2A 50/60HZ
- Operating temperature: -20℃～60℃
- Can monitor the oil level, water level, density, volume, and temperature of 12 oil tanks at the same time
- Automatic alarm and manual alarm release
- Automatic generation of oil inlet report, inventory report, alarm report, and leakage report
- Automatic tank table generation and correction
- Leakage monitoring function
- Tank table data entry and export
- Open networking protocol, which can be connected to other companies’ management systems
🛡️
Warranty & Support
1 Year
